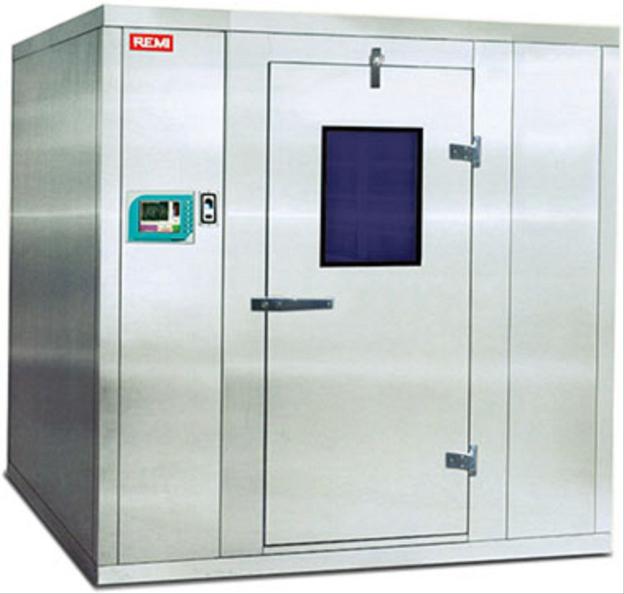

“Earth Agro” Make Walk in Chamber/Cold Chamber is design to suit standards for stability in Temperature & Humidity. Application: Walk in Chamber/Cold Chamber are providing the controlled climatic condition with the help of Dry air refrigeration & Humidity system built-in. This Chambers are basically in application with Chemical Process and Biotechnology.
“Earth Agro” Make Walk in Chamber/Cold Chamber is design to suit standards for stability in Temperature & Humidity. Application: Walk in Chamber/Cold Chamber are providing the controlled climatic condition with thw help of Dry air, refrigeration & Humidity system built-in. This Chambers are basically in application with chemical, Biotechnology. Research & also Tissue Culture R&D test to confirm the successful result of the product under test.

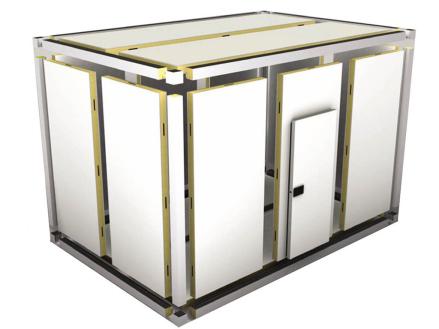

Pre Fabricated Cabinet: Walk in Chambers are built up with highly insulated (60mm/80mm/100mm) 40+2KG/M2 with high density foamed pre-engineered prefabricated puff panels can be assembled to meetany test for climatic conditions or size requirement forming into cabin’s or room type structure, which can be erected at the side of construction easily. The cabinet will be made with the high quality Pre coated GI sheet 24/26ga galvanized steel in Interior/Exterior finish OR in some case SS-304 Pre polish sheet will be used for the interior of the cold chamber flush type panel with glass window of viewing inside objects with silicon gasket & locking arrangement.
work : For storing the Germplasm, seeds bulbs, rhizome, tubers etc. at low temperature and low humidity.
AIR CIRCULATION : Air circulation will be provided with the help of blower fitted inside the chamber.
AIR CIRCULATION SYSTEM : Package unit with reputed make compressor (Hermetically sealed) with low voltage start with all accessories and fan cooled condenser are fitted to give efficient cooled desired temperature, Air- entire refrigeration system, Condensing UV and corrosion resistance, inner grooved copper tubes, in-built safety and control device, Weather proof canopy, Evaporator unit Stainless steel body and excellent corrosion resistance, inner grooved copper tubes, Circulated Room Air will be purified by washable fine filter.
Touch Screen/Feather Touch Control Panel for Humidity & Temperature: Humidification: Upto 80% + 4% Accuracy, humidification through air handling unit/Ultra sonic vapour humidifier inside the chamber. This system works with humidity controlled system and cold humid air switched on and off by the controller, it provide superior humidity control, even at below-ambient conditions.
DE-HUMIDIFICATION: Suitable for ambient temperature 15oC-35oC
MICROPROCESSOR TEMPERATURE CONTROLLEER PID: Controller: 4 Digit LED display SV & PV, Soft touch panel, Platinum sensor probe Pt-100, Set point lock, Level lock, Sensor failure indication, Display resolution 0.1oC, Accuracy +0.1oC.
MICROPROCESSOR HUMIDITY CONTROLLER: Real Time microprocessor based On/Off control for Humidifying/ dehum, Hysteresis | Differential 10%-9%, Delay timer 0-240 sec, Direct/Reverse selectable, Lock functions to prevent miss operating, feather touch operation, Fast response sensor-line resistance< 100, display accuracy- indicating value+0.2%+1digit
Door locking system High Pressure Indicator UV Lighting Double Glass Window
